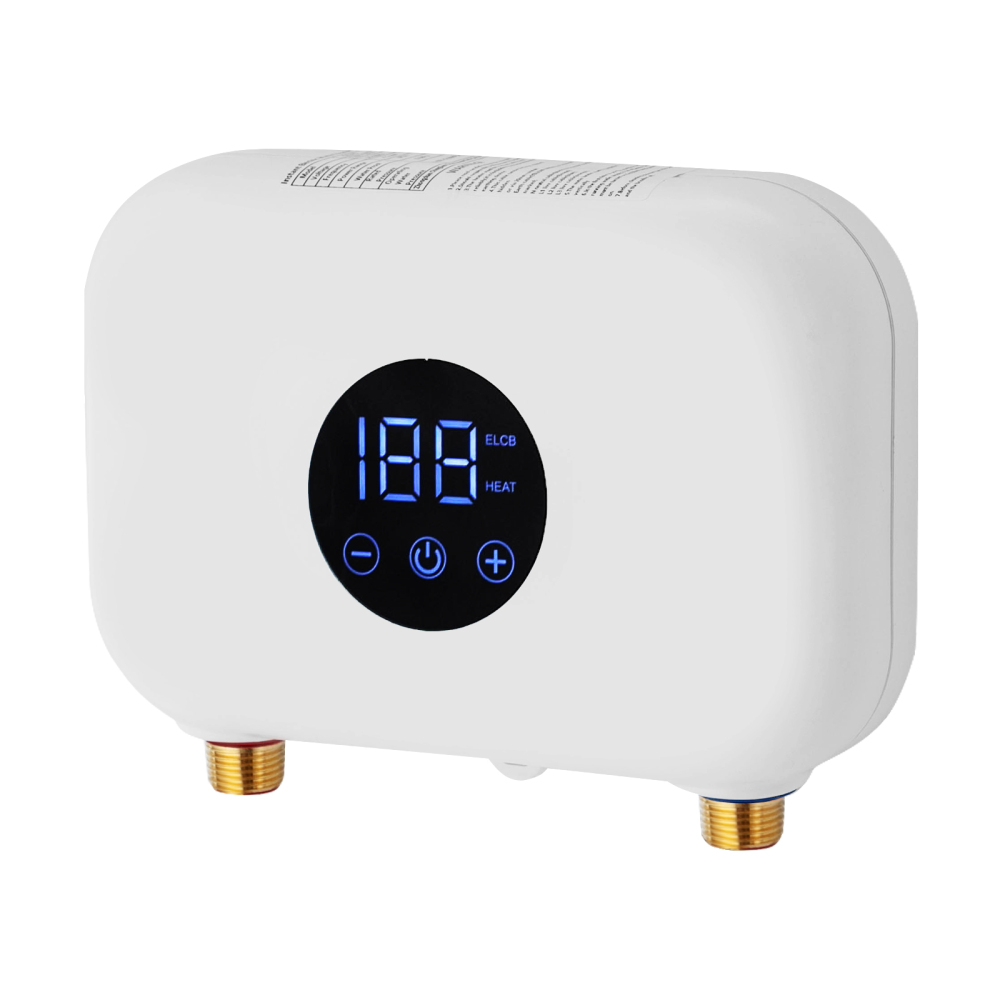

110V Electric Tankless Water Heater, Mini Water Heater, Instant Small Water Heater
- Brand: Oukaning
- Product Code: JZETXH-002400US
- Availability: In Stock

Specifications
Model | Q1245 | Color | White |
Style | Modern | Material | ABS, Cast Aluminum |
Mounting Type | Wall-mounted | Screen Type | Digital Display |
Control Mode | Microcomputer | Water Inlet Mode | Lower Water Inlet |
Water Pressure | 0.02Mpa~0.6Mpa | Rated Pressure | 0 MPa |
Temperature Adjustment Range | 30-55℃/ 86-131℉ | Protection Level | IP24 |
Heating Power | 4500W | Voltage | 110-127V, 50-60Hz(Without Plug) |
Wire Cross-section Requirements | 6mm² Copper Wire | Rated Water Flow | 2-6L/0.53-1.59gal/min |

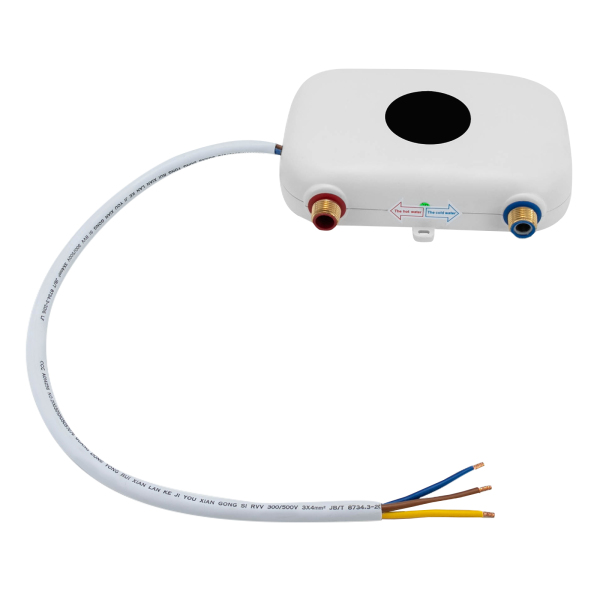

Power Cord Lengrh | 0.6-0.7m/1.97-2.3ft | Product Size | 22*5.3*15cm/ 8.66*2.09*5.91in |
Package Size | 27*23*11cm/ 10.63*9.06*4.33in | Net Weight | 1.4kg/3.081lbs |
Gross Weight | 1.23kg/2.71lbs |
Product Tips


Notes
1.Instant electric water heaters have high requirements for installation wiring. Before purchasing, please confirm whether the wiring is copper wire of ≥ 6mm² and whether the switch is ≥ 40.9A (ampere).
2.Whether the product can be used for shower purposes depends on the usage scenario and inlet water temperature. In areas where the inlet water temperature is cold, this product cannot be used for bathing.
3.Please do not use an electric water heater when the water pipe freezes, otherwise, it may damage the product.
4.Please ensure that cold water flows through the unit before connecting to the power supply to avoid dry heat. When wiring, please be sure to distinguish between the ground and zero wires.
5.Please read the manual and product label completely before use, and pay particular attention to the safety instructions included. We recommend professional installation.
6.The heater must be earthed safely and reliably, it is forbidden to disassemble the earthing device. This cable can be surfaced clipped hidden or via a 20mm conduit. The first time using the machine or the running water supply is cut off, the water tap must be turned on first, then keep the power on.
7.Before cleaning, you must turn the switch and the breaker off.
8.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
